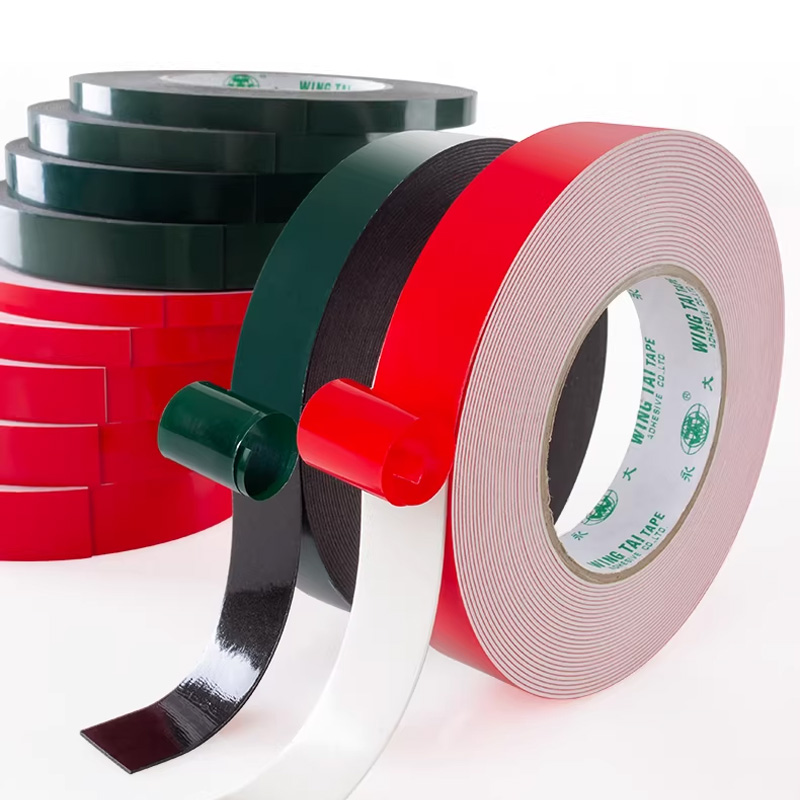

Double Sided PE Foam Tape - Waterproof Mounting Adhesive for Gap Filling & Vibration Dampening

  • Description
  • Quick Detail
  • Description
  • Specifications
  • Application Guide

Place of Origin:

China

Brand Name:

Wingtai/OEM

Model Number:

DV10

Certification:

RoHS and Reach Compliance

Packaging Details:

Shrink film

Delivery Time:

30 days

Payment Terms:

T/T 30% deposit, balance before delivery.

Supply Ability:

100 containers per month

Strong Mounting Bond: High-tack adhesive grips securely to glass, metal, plastic, and finished wood surfaces.

Vibration Dampening: Soft polyethylene foam structure absorbs shocks and reduces noise between connected parts.

Gap Filling: Compressible foam core conforms to irregular textures to create a flush, tight seal.

Weather Resistant: Closed-cell design repels moisture and withstands temperature changes for indoor and outdoor projects.

Clean Application: Peel-and-stick design offers a mess-free alternative to liquid glues and mechanical fasteners.

Reliable Holding Power for Irregular Surfaces

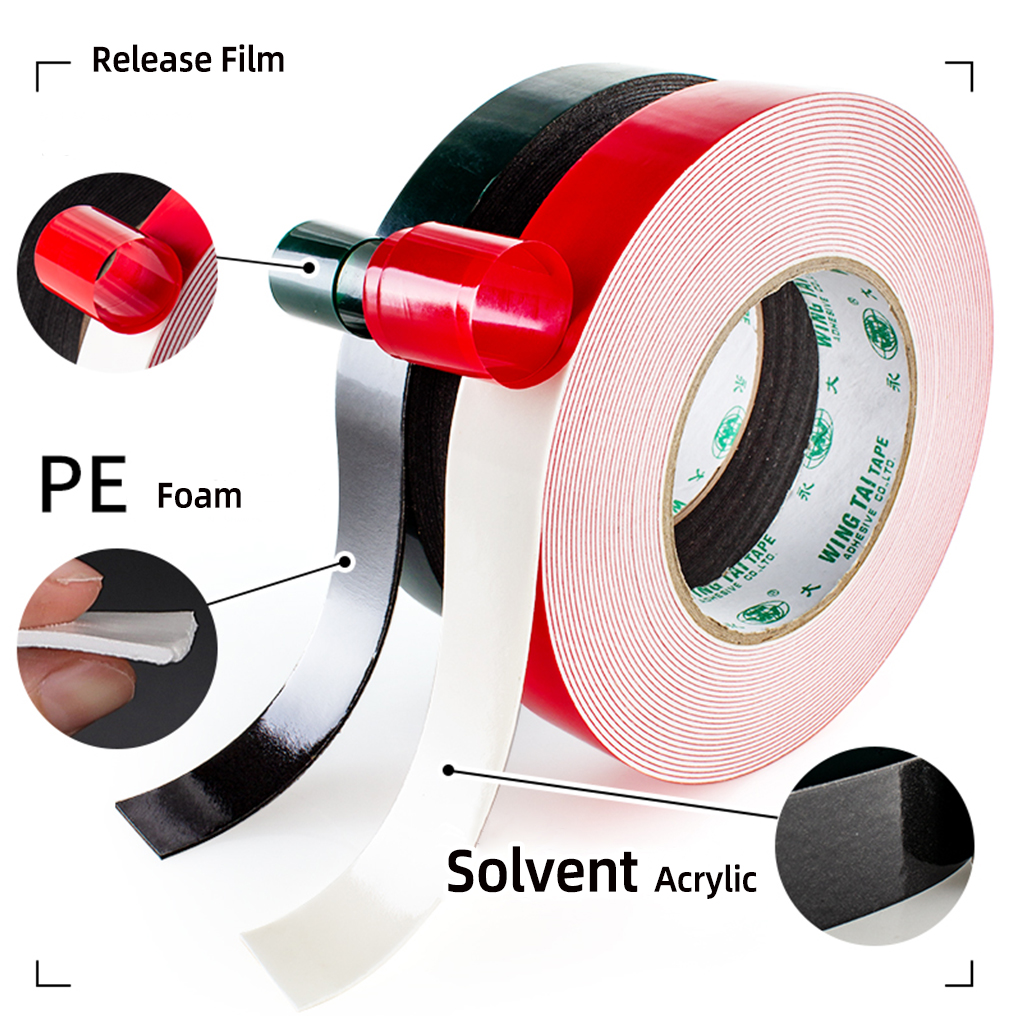

Mounting objects to textured or uneven surfaces requires an adhesive that adapts to the environment. This Double Sided PE Foam Tape provides a compressible polyethylene base that fills gaps and creates a permanent bond without the mess of liquid glues or the surface damage caused by drilling holes. Coated with a high-tack acrylic adhesive on both sides, it holds signs, trims, and mirrors securely in place.

The closed-cell foam acts as a physical buffer. It isolates vibrations, deadens sound, and protects mounted items from impact forces, making it highly effective for automotive and acoustic applications.

Performance Characteristics

  • Shock & Sound Absorption: Deadens vibrations and rattling in machinery, vehicle interiors, and acoustic panels.
  • Uneven Surface Bonding: The soft foam compensates for mismatched or textured substrates.
  • Moisture Resistance: The closed-cell structure blocks water penetration, performing well in damp conditions like bathrooms or exterior signage.
  • Instant Grab: The pressure-sensitive coating holds immediately upon contact, speeding up assembly lines.

Common Application

  • Signage & Displays: Mounts nameplates, point-of-purchase displays, and indoor signs firmly to walls without screws.
  • Automotive & RV: Attaches exterior trim, badges, and side molding while absorbing road vibrations during travel.
  • Window Glazing: Creates a weatherproof, draft-blocking seal between glass panels and window frames.
  • Home Construction: Fixes bathroom mirrors, plastic hooks, and decorative molding safely to painted drywall.

Item Code

Material

Color

Thickness
(mm)

Adhesion to steel
(N/25mm)

Initial Tack (#)

Holding Power (#)

DV05

PE

black/white

0.5

≥10

≥12

≥12

DV10

PE

black/white

1

≥10

≥12

≥12

Clean Surfaces: Wipe both surfaces with rubbing alcohol to remove grease, dust, and moisture. Let them dry completely.

Apply the Tape: Stick the tape to the heavier object first. Press firmly along the entire length to activate the adhesive.

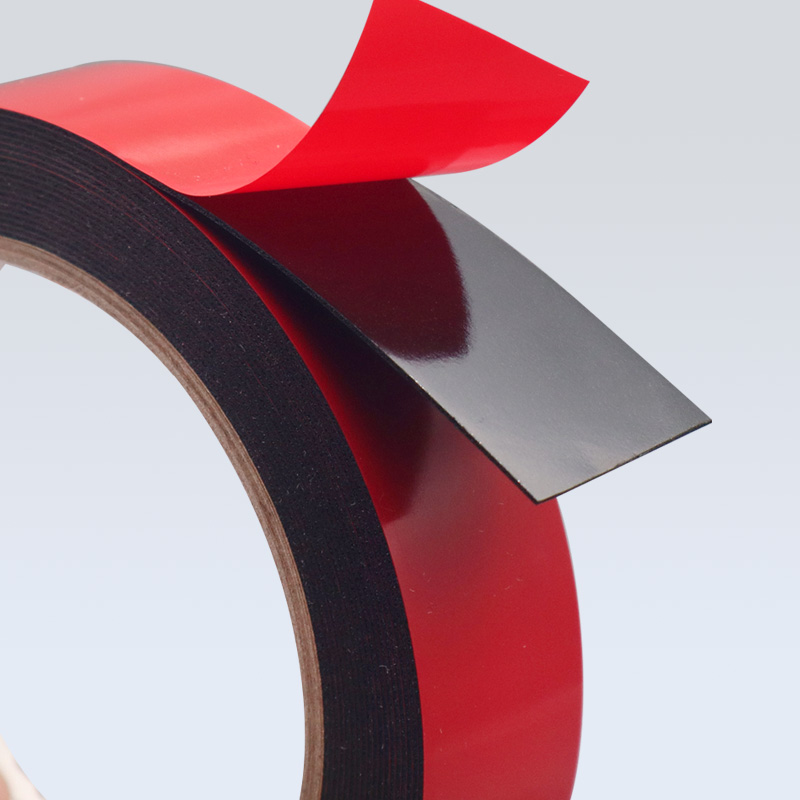

Remove Liner: Peel off the red or white protective backing.

Final Mounting: Press the object against the wall or target surface. Apply firm pressure for 30 seconds.

Curing Time: The adhesive bond reaches 100% strength after 24 hours. Avoid placing heavy stress on the mount during this time.
